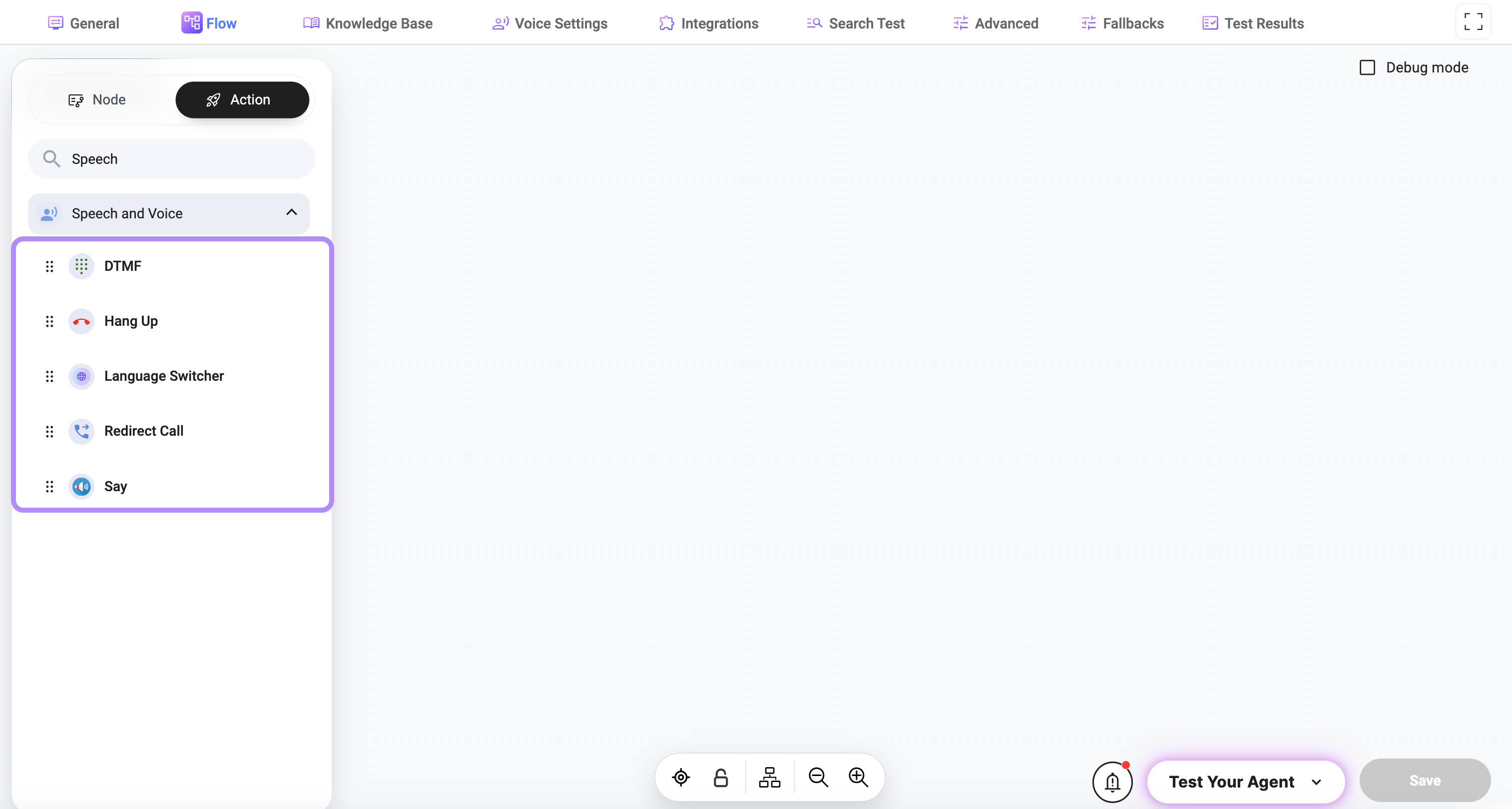

DTMF
DTMF
Captures keypad input from the caller during a call.
Required data
-
DTMF Value
Type:string
Variable used to store the pressed key. Example:%dtmf% -
Output
Type:string
Message returned after input is received. Example:DTMF signal %dtmf% was received.
Notes
- Used for IVR menus (Press 1 / Press 2)
- Can be used in conditions to route calls
Hang Up
Hang Up
Language Switcher
Language Switcher
Switches language and voice processing during the call.
Required data
-
Language
Type:string
Language for recognition and responses. Example:English
Optional data
-
STT Processor
Type:string
Speech-to-text engine. Example:Flux General -
VAD Model
Type:string
Detects when user starts/stops speaking. Example:None -
EOT Model
Type:string
Detects end of user speech. Example:None -
TTS Processor
Type:string
Text-to-speech engine. Example:Deepgram Aura 2 -
TTS Voice ID
Type:string
Voice configuration. Example:aura-2-andromeda-en
Notes
- Affects both input (STT) and output (TTS)
- Use for multilingual flows
Redirect Call
Redirect Call
Transfers the call to another destination.
Required data
-
Transfer To
Type:string
Phone number, extension, or SIP URI. Examples:
+14155551234
222222
sip:222222@example.com
Optional data
-
Is SIP
Type:boolean
Enable if destination is SIP. -
Introduction
Type:string
Message before transfer.
Notes
- Works only if a phone number is attached to the bot
Say
Say
Plays a voice message to the caller.
Required data
-
Announcement Text
Type:string
Text to be spoken. Example:Please hold while I connect you.
Optional data
-
Terminate LLM answer
Type:boolean
Stops current AI response. -
Incognito call
Type:boolean
Prevents storing/logging message.
Notes
- Used for system messages and prompts
