Before configuring SIP routing, you can create an extension manually.
Creating an extension is optional.
An extension can be automatically generated when configuring the SIP Integration.

​
Create Extension (Optional)

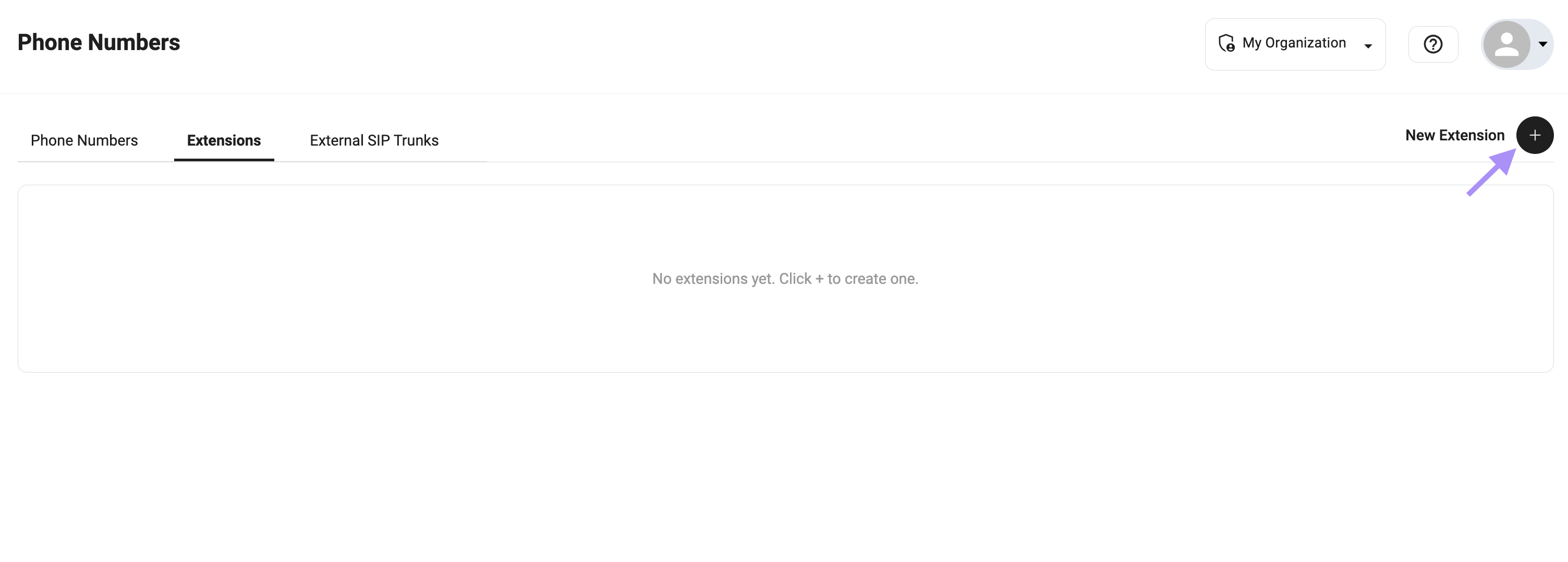

  1. Go to Phone Numbers
  2. Open the Extensions tab
  3. Click + to create a new extension
SIP Extension

​
Configuration

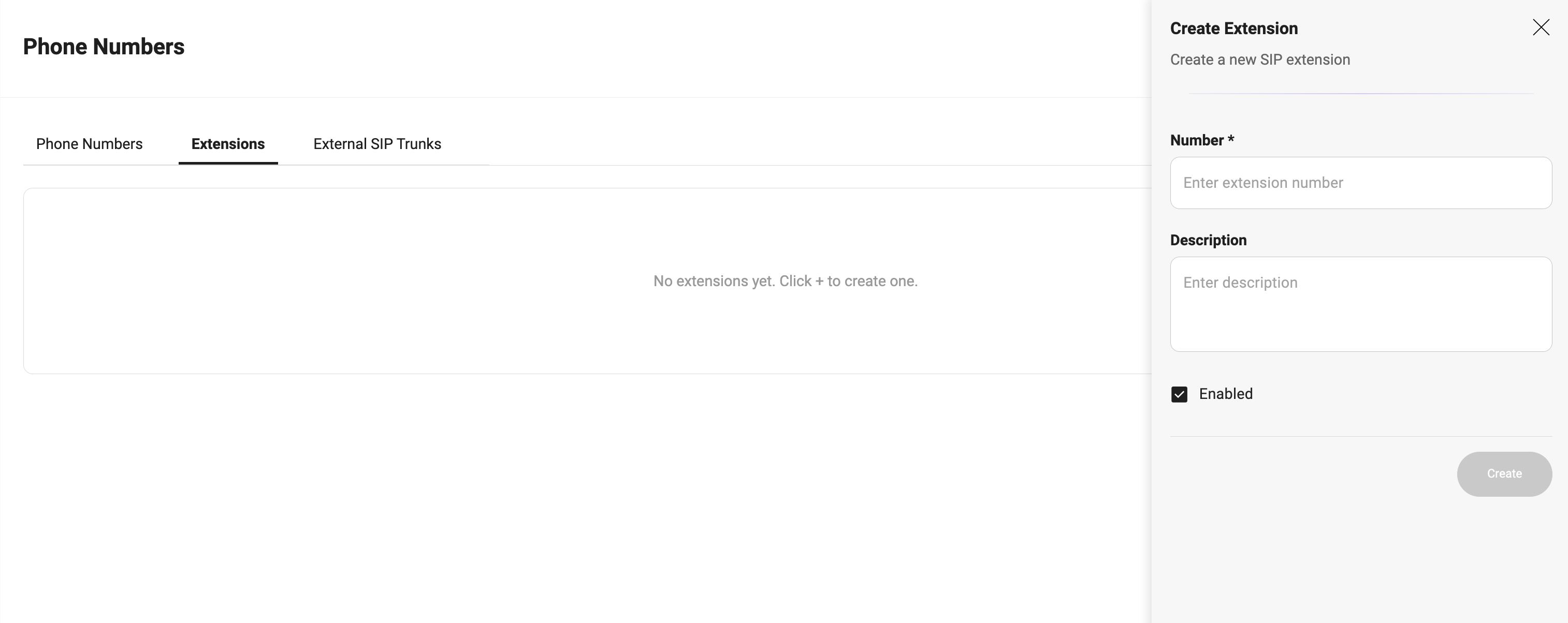

Fill in the required fields:
  • Number — internal extension (e.g., 222222)
  • Description — optional label (e.g., Support, Sales)
  • Enabled — must be active

​
Example

Number: 222222
Description: Support
Enabled: true
SIP Extension

​
Usage

Extensions are used for:
  • Call transfers via Redirect Call
  • SIP routing (sip:${extension}@...)
  • Connecting bot ↔ PBX ↔ agents
If you do not create an extension manually, the system will generate one automatically during SIP Integration setup.
