Call Attached Data

Call Attached Data (CAD) allows you to configure key-value pairs that are attached to calls and passed to downstream integrations and APIs. CAD fields can be configured in two places:

Platform settings — CAD fields applied across the tenant.
Bot configuration — CAD fields applied only to interactions for the current bot.

All interactions in this tenant will use the CAD fields configured in Platform settings.

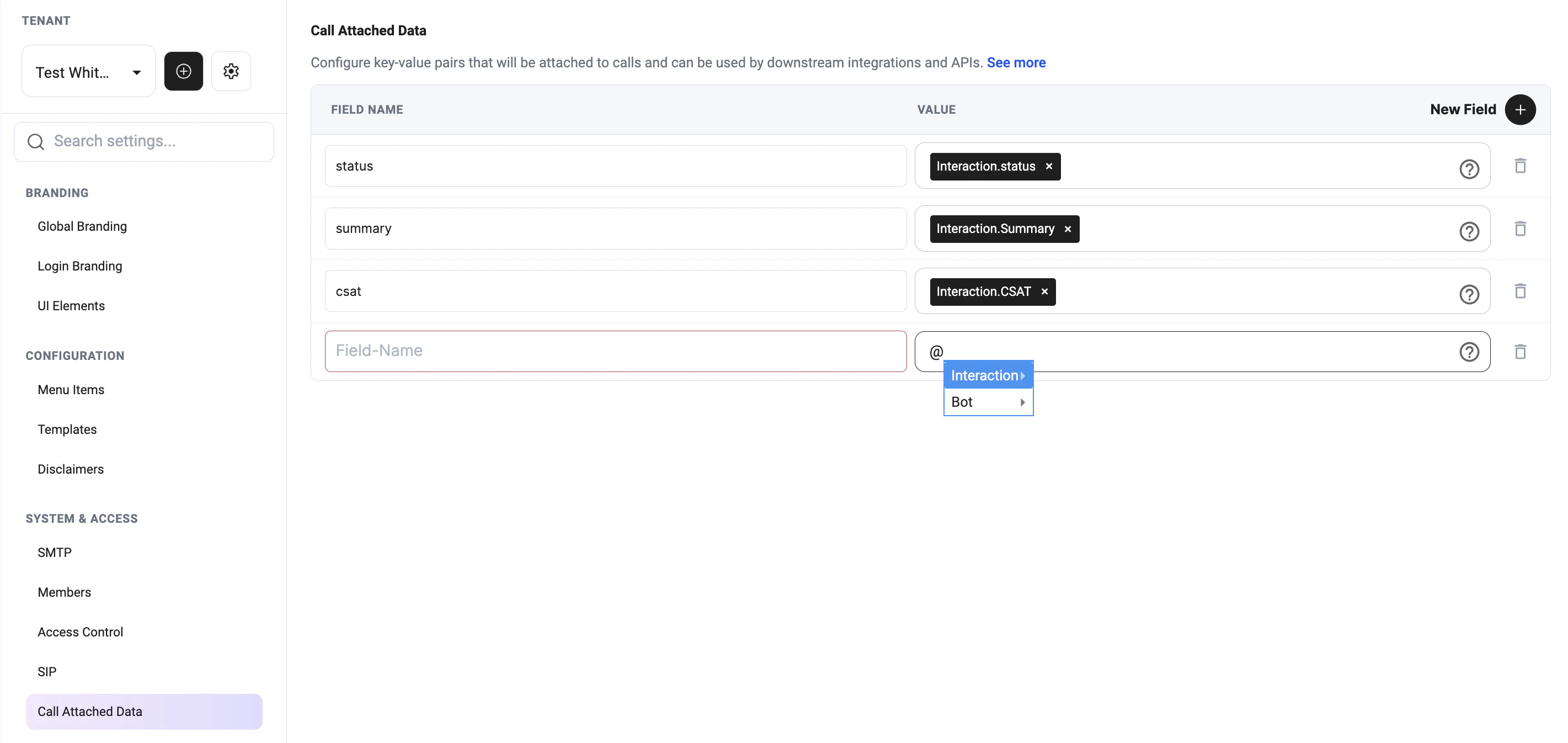

Platform-level CAD configuration

Platform Settings → System & Access → Call Attached Data

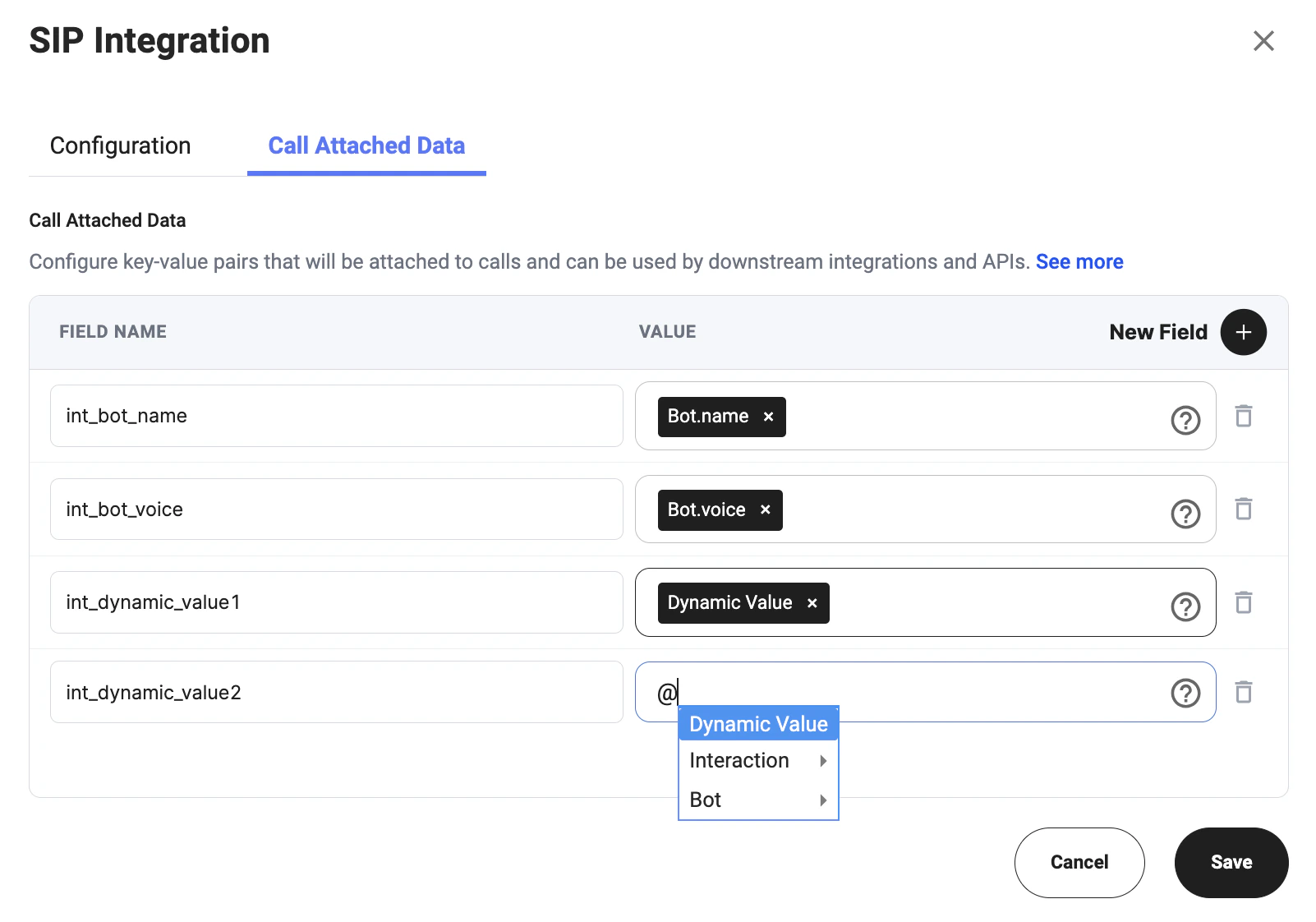

Configure CAD for a bot

Agent Configuration → Integrations → SIP Integration → Call Attached Data

To configure CAD fields for a specific bot:

Open Bot configuration.
Go to Integrations.
Open SIP Integration.
Select the Call Attached Data tab.
Click New Field.
Add the Field Name.
Select or enter the Value.
Click Save.

Only interactions in the current bot will use the CAD fields configured in the bot’s SIP Integration settings, together with CAD fields from Platform settings.

Field Name

The Field Name is the key that will be sent with the call. Use clear and consistent names so downstream systems can recognize the data correctly. Examples:

status
summary
csat
int_bot_name
int_bot_voice
int_dynamic_value1

Value

The Value is the data attached to the field. You can use available variables from the selector, such as:

Interaction variables
Bot variables
Dynamic Value variables

Examples:

Interaction.status
Interaction.Summary
Interaction.CSAT
Bot.name
Bot.voice
Dynamic Value

Example

Field Name	Value
`status`	`Interaction.status`
`summary`	`Interaction.Summary`
`csat`	`Interaction.CSAT`
`int_bot_name`	`Bot.name`
`int_bot_voice`	`Bot.voice`

Read CAD Fields

Call Attached Data (CAD) fields attached to interactions can be retrieved using API endpoints. Supported response formats:

JSON
XML

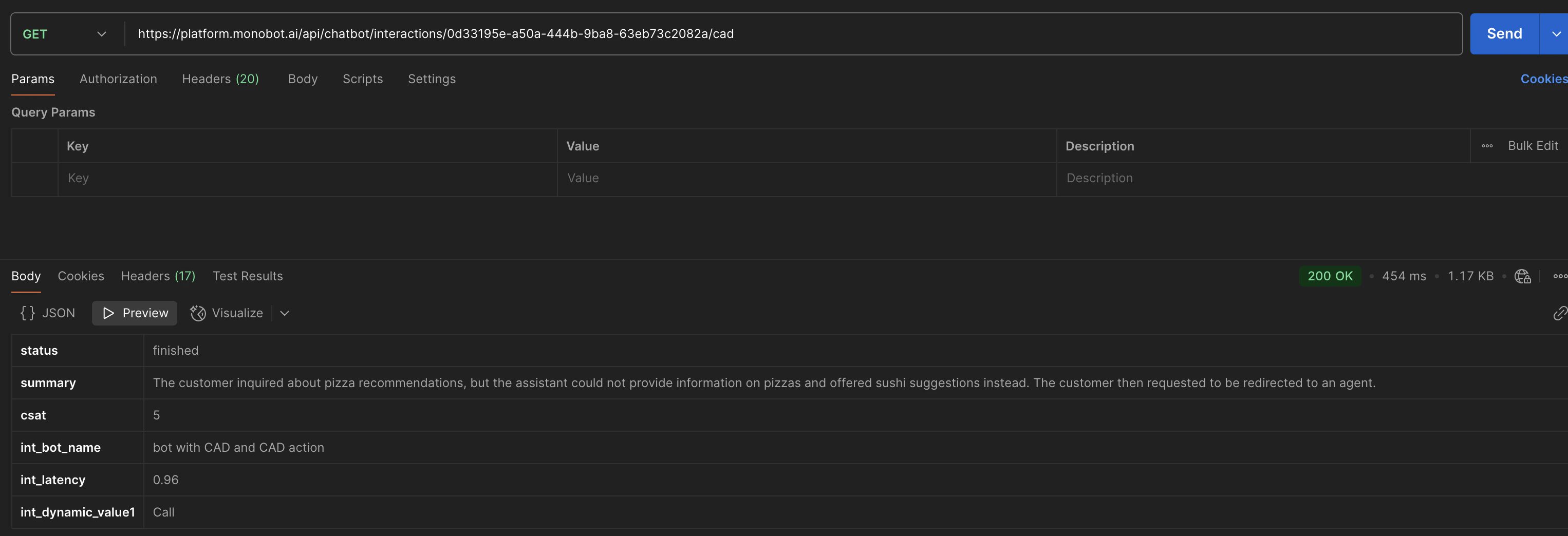

Read CAD in JSON Format

GET https://platform.monobot.ai/api/chatbot/interactions/{interactionId}/cad

Path Parameters

Parameter	Type	Description
interactionId	string	Unique interaction identifier.

Response Example

{
  "status": "finished",
  "summary": "The customer requested to be redirected to an agent.",
  "csat": 5,
  "int_bot_name": "Support Bot",
  "int_latency": 0.96
}

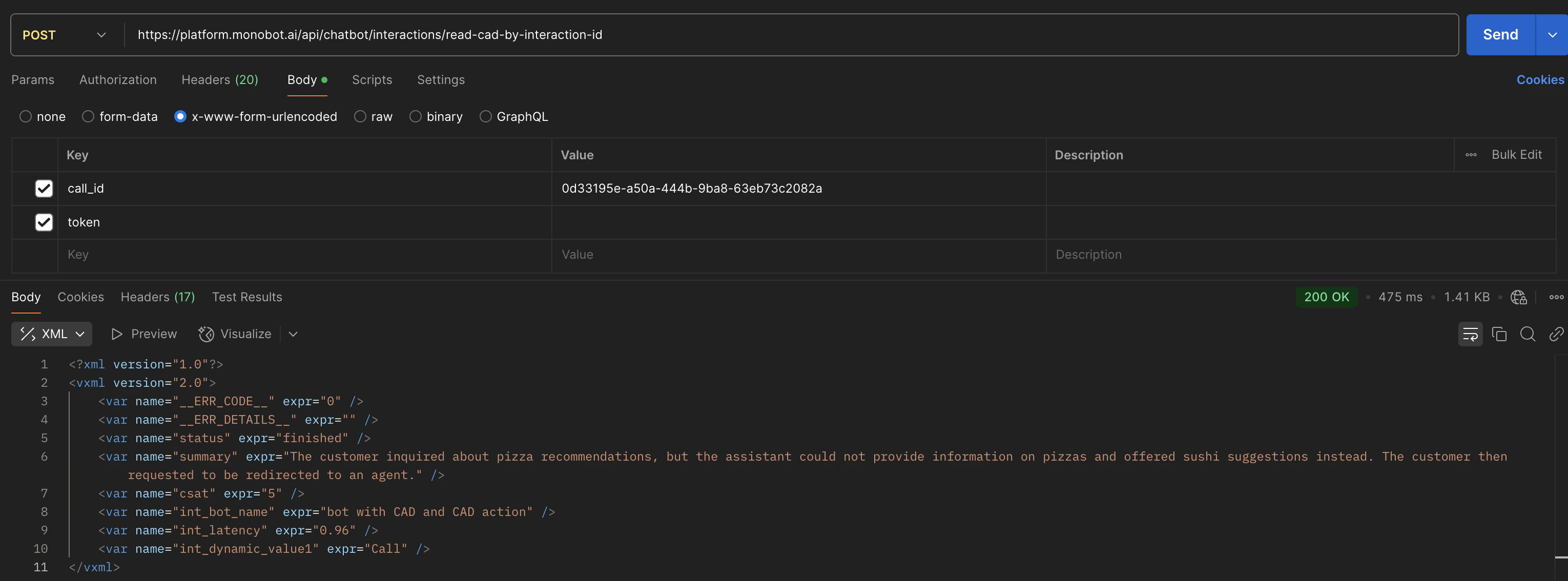

Read CAD in XML Format

POST https://platform.monobot.ai/api/chatbot/interactions/read-cad-by-interaction-id

Body Parameters

Parameter	Type	Description
call_id	string	Interaction or call identifier.
token	string	Authentication token.

Request Format

x-www-form-urlencoded

Response Example

<?xml version="1.0"?>
<vxml version="2.0">
    <var name="status" expr="finished" />
    <var name="summary" expr="The customer requested to be redirected to an agent." />
    <var name="csat" expr="5" />
    <var name="int_bot_name" expr="Support Bot" />
</vxml>

Notes

CAD fields are returned based on interaction-level and bot-level CAD configuration.
Returned fields may vary between interactions depending on configured dynamic variables.
JSON format is recommended for API integrations and external systems.
XML format is primarily used for SIP and telephony workflows.
Empty or undefined CAD fields may be omitted from the response.
